At PipeMap Solutions, LLC we deliver accurate weld maps and professional documentation packages tailored to piping projects across multiple industries. With years of hands-on inspection experience, our founder ensures every deliverable meets the highest standards for quality and clarity. Below is a sample of our work — created with precision and client confidentiality in mind.



Industrial pipeline installation at sunset with excavation equipment and a worker in safety gear.

Some of our Services

A detailed technical plumbing or piping schematic with multiple labeled pipes, valves, and fittings, including red labels with codes and notes, and various detailed sectional views.

Weld Mapping Services

Turn your hand-marked isometric into a clean, professional weld map.
✔ Weld tracking by number
✔ Color-coded welds on client drawings
✔ Delivered as high-resolution PDFs

Pricing:
Projects typically range from $50–$300 per drawing, based on complexity and markup quality.

Request a Quote

A detailed spreadsheet with blue headers and grid lines, listing different sizes, welds, inches made, repairs called and made, cut-outs called, new welds, and total inches made, with placeholders for data entries and a date of 5/31/2025.

Weld Log Creation

Need organized weld traceability? We build professional logs from your weld maps.
✔ Excel or PDF format
✔ Includes weld numbers, welder IDs, locations
✔ Optional: welder continuity logs, WPS, process details

Pricing:
Starting at $100/project, up to $300 for full packages.

Request Sample Log

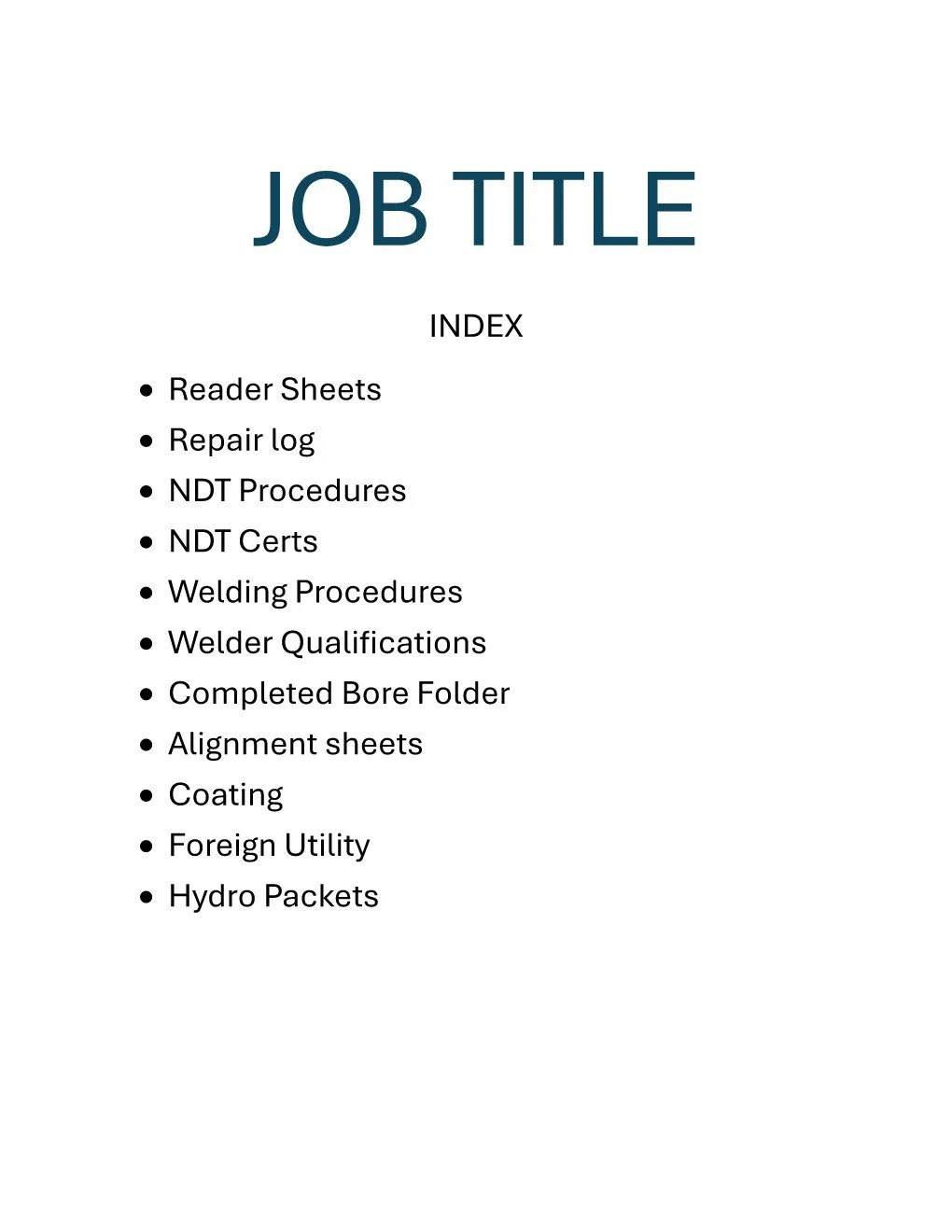

Table of contents page for a job manual, listing sections such as Reader Sheets, Repair Log, NDT Procedures, NDT Certs, Welding Procedures, Welder Qualifications, Completed Bore Folder, Alignment Sheets, Coating, Foreign Utility, and Hydro Packets.

Data Book Assembly

Professional turnover documentation — organized, complete, and client-ready.
✔ Includes weld maps, logs, MTRs, NDE reports, WPS/PQRs
✔ Delivered as bookmarked digital PDF or printed binder
✔ Optional: sorting, renaming, indexing, document QA

Pricing:
Flat rate: $250–$1,500 depending on scope
Hourly option: $60/hour (for disorganized materials)

Schedule a Discovery Call OR Request a Quote
